SG 110 + MA 270 + MD 272 Electronic Digital Measuring Device
SCHTEC SG 110, MA 270 & MD 272 45° PVC glazing bead cutting, 0.1 mm accuracy, WiFi data transfer, 3m capacity, ideal for efficient workshop production.
SG 110 + MA 270 + MD 272 TECHNICAL SPECIFICATIONS
SG 110
| Power Supply | 400 V, 3 Ph, 50-60 Hz |
| Total Power Output | 1.5 kW (0.75 kW x 2), 3.75 A |
| Air Pressure | 6-8 bar |
| Air Consumption | 70 l/min |
| Spindle Speed | 3,000 rpm |
| Saw Blade Diameter | 200 mm x 2 / Ø100 mm x 2 |
| Max. Cutting Length | 3,000 mm |
| Min. Cutting Length | 230 mm |
| Machine Width | 1,210 mm |
| Machine Height | 1,040 mm |
| Machine Length | 550 mm (+ 4,775 mm manual conveyor system) |
| Machine Weight | 180 kg |
MA 270
| Power Supply | 230 V, 1 Ph, 50-60 Hz |
| Total Power | 6A NEMA34 Stepper Motor |
| Max. Profile Length | 3,300 mm |
| Machine Height | 1,400 mm – 1,500 mm (Adjustable) |
| Machine Width | 570 mm |
| Machine Length | 3,750 mm |
| Machine Weight | 192 kg |
Description
Standard Features
SG110

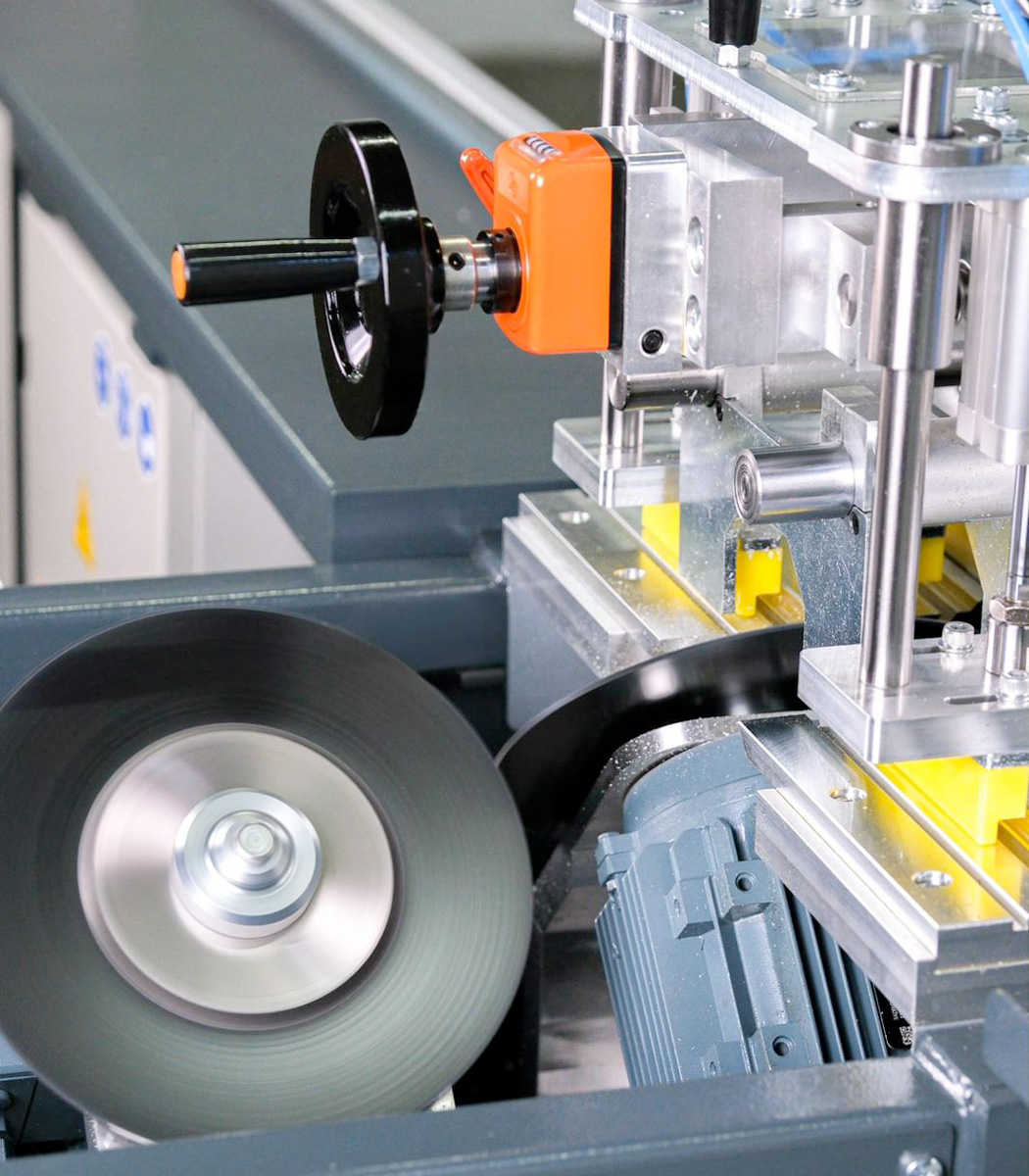

- High precision cutting of PVC glazing bead profiles at 45°
- Two glazing bead profiles can be cut at the same time with a specially designed mould
- Adjustable mould system
- Adjustable blade speed
- Vertical pneumatic profile clampings system for high precision cutting
- Manual Measurement system and profile support conveyor are standard equipment of the machine
MA270 (Optional)
- 0,1mm precision cut capability with measurements entered via an WIFI connected ruler or via the operator panel
- Special mechanical design with stepper motor controlled and linear slide bearing system provides high speed resistance and accurate and fast positioning
- Operator panel with Industrial Windows CE operating system and PLC controller system
- Data transfer in CSV format via WIFI connection or USB Port directly.
- Parameters such as cutting length, number of cuts and item numbers can be edited and changed via the operator panel
- Unlimited number of cut-lists can be entered, and each cut-list can contain up to 1000 cuts.
- Can be used along with Glazing Bead Saw Machine, Single Head Machine and other similar applications
- Height adjustment can be done easily for the machine for which it will operate with.
MD272 (Optional)
- Digital ruler with 0,1 mm accuracy for measuring glazing bead profiles
- Measures up to 2 m with its special design (3 m with the extension part)
- Measured data is transferred to the machine with WIFI and stored in the machine
- Measured data is cut in the order it is received, thus preventing any confusion, and the used data is marked on the machine
- The motions of the machine can be simulated visually through high-tech 16 million color TFT LCD operator
GC265 (Optional)
- Manual Measurement Conveyer for SG100 – SG110
Product Description
The SCHTEC SG 110, MA 270, and MD 272 combination provides fully automated 45° angle processing of PVC glazing bead profiles with 0.1 mm accuracy. The SG 110 features an adjustable mold system, and the MA 270 includes a WiFi-connected operator panel and stepper motor linear rail system for high-precision positioning. With the MD 272 digital ruler, 2–3 m measurement and CSV data transfer are possible. Its compact structure, 1.5 kW motor, and user-friendly TFT LCD screen ensure efficient and uninterrupted production in workshops.
FAQ
Cutting Machines for PVC Profiles
Frequently Asked Questions
Find quick answers to common questions about our PVC Cutting Machines.
1. What is the difference between a single-head and a double-head cutting machine?
A single-head cutting machine, like the Schtec SS 110, is a versatile and compact solution ideal for lower-volume production or custom-angle cuts, as it makes one cut at a time. A double-head cutting machine, such as the SD 140 or DCA 440, significantly increases production speed by cutting both ends of a profile simultaneously at perfect 45° or 90° angles. This makes them ideal for medium to high-volume manufacturing where efficiency is key.
2. How do Schtec machines achieve a clean and precise cut on PVC?
A glazing bead saw, such as the Schtec SG 100/110, is a specialized machine designed specifically for cutting the small PVC glazing bead profiles that hold the glass in place within the window frame. It uses a specially designed mould system to cut two profiles at once at a precise 45° angle. For full automation and accuracy, these machines can be paired with automatic measuring systems like the MA 270 or the MD 272 digital measuring device.
3. What is a "glazing bead saw" and which profiles is it for?
A glazing bead saw, such as the Schtec SG 100/110, is a specialized machine designed specifically for cutting the small PVC glazing bead profiles that hold the glass in place within the window frame. It uses a specially designed mould system to cut two profiles at once at a precise 45° angle. For full automation and accuracy, these machines can be paired with automatic measuring systems like the MA 270 or the MD 272 digital measuring device.
4. Many machines are listed as "PVC & Aluminium." Do they require special adjustments for different materials?
Yes. While machines like the SD 140 and SS 110 are engineered to cut both materials, processing aluminium requires different settings and features. For cutting aluminium, a cooling system is offered as an option to lubricate the blade and prevent overheating. Additionally, a hydro-pneumatic system is used to ensure a smoother, more controlled blade feed speed, which is necessary for cutting harder aluminium profiles without causing stress.
5. How does an automatic measuring system improve the glazing bead cutting process?
An automatic measuring system, like the MA 270, and an electronic digital measuring device, like the MD 272, eliminate the risk of human error in measurement. The measured data for glazing beads can be transferred to the saw via Wi-Fi. The machine then cuts the pieces in the received order, preventing confusion and ensuring every bead is cut to the exact required length with 0.1mm precision. This not only increases accuracy but also significantly speeds up the workflow.
