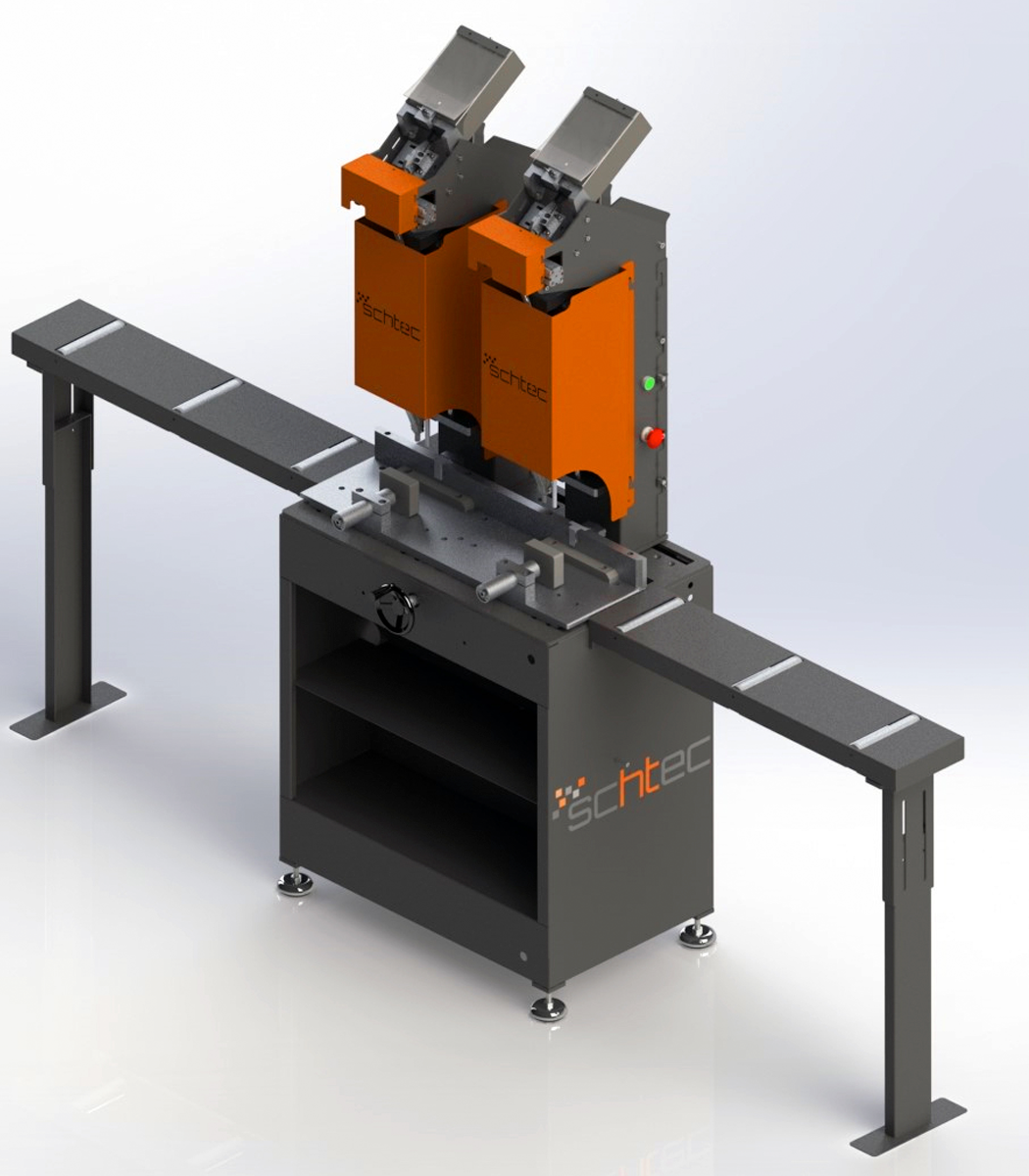

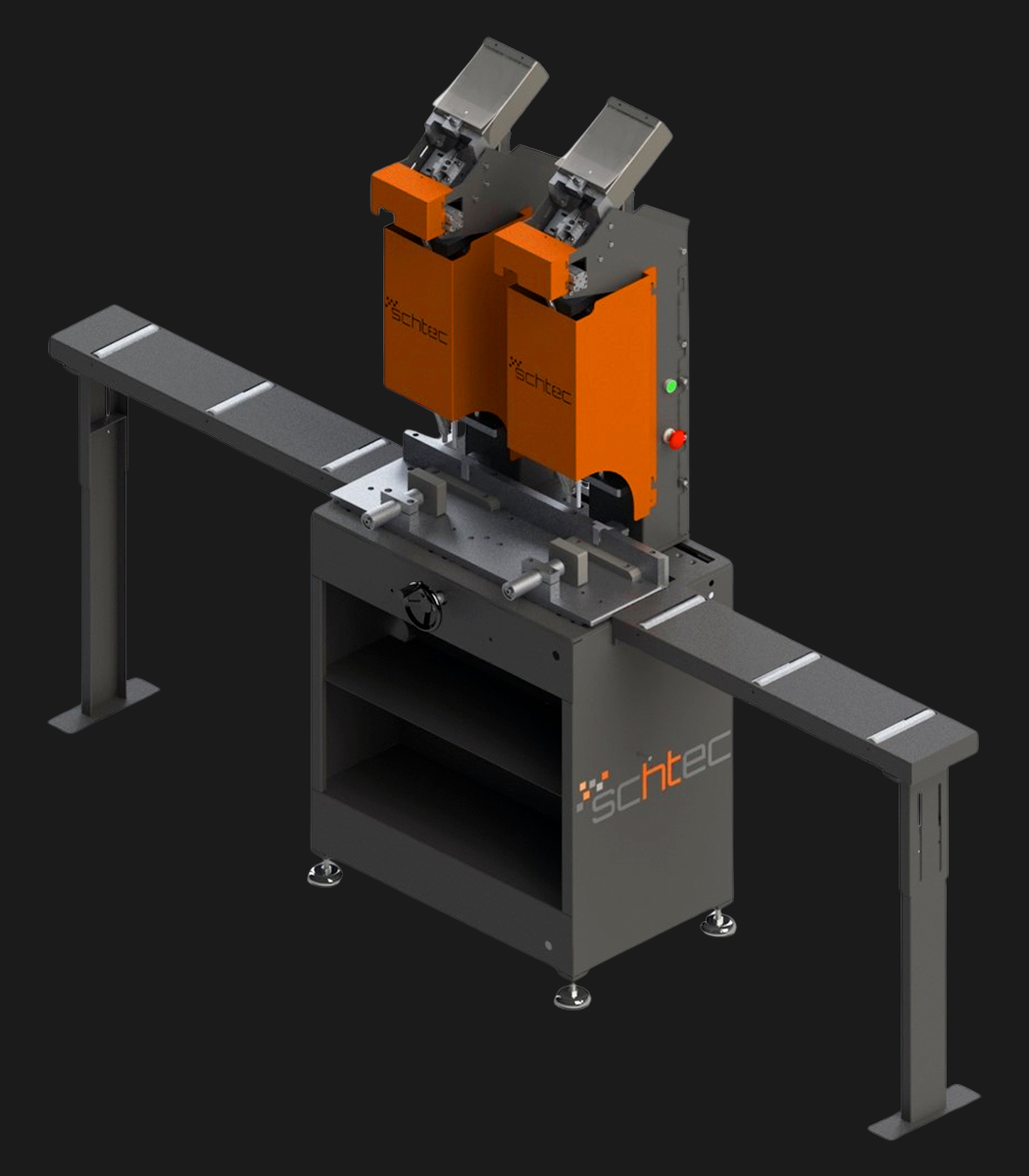

RS 172 Double Head Vertical Reinforcement Screwing Machine
The SCHTEC RS 172 offers dual-head vertical screwing for PVC and aluminum profiles with pneumatic feeding, torque control, and 1.5 sec/head speed for high precision and efficiency.
RS 172 Technical Specifications
| Motor Power | 2 kW |
| Voltage | 220 V, 1 Ph, 50-60 Hz |
| Air Pressure | 6-8 bar |
| Air Consumption | 16 lt./min |
| Max. Profile Width | 130 mm |
| Min. Profile Width | 15 mm |
| Machine Height | 2,000 mm |
| Machine Length | 500 mm (2,230 mm with conveyor) |
| Machine Width | 610 mm |
| Machine Weight | 150 kg |
Standard Features
- Pneumatic automatic screw feeding unit
- Screwing heads can operate simultaneously or independently
- Automatic stop after the screwing process
- Foot pedal control for flawless screwing
- Safety switch to prevent faulty operation
- Special screw height adjustment switch

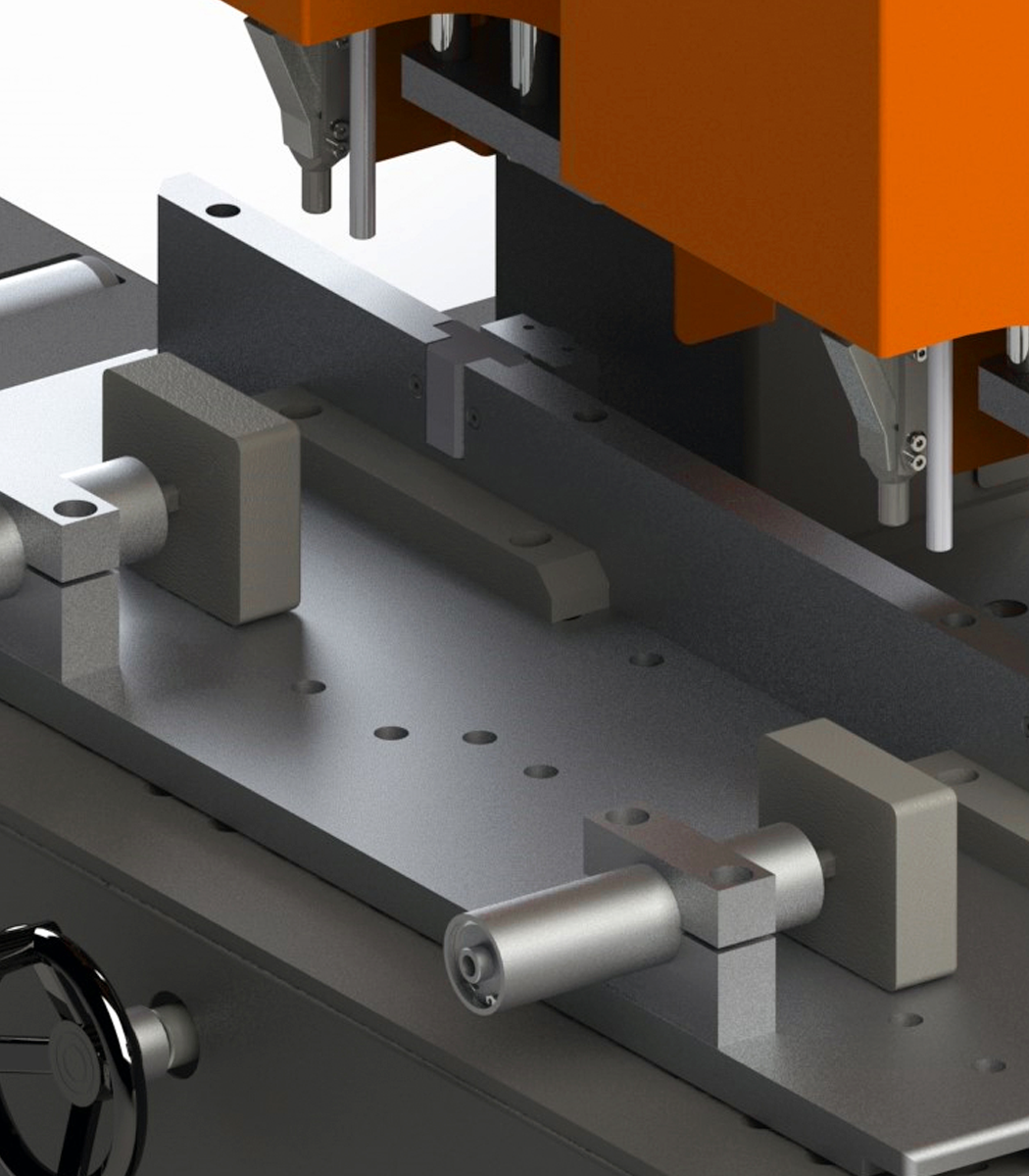

- Automatic profile clamping during screwing
- Adjustable range stop with profile support
- Long-lasting bit usage and easy replacement
- Adjustable torque according to screw type
- Average screwing speed: 1.5 sec/piece (for each head)
Product Description
The SCHTEC RS 172 Double Head Vertical Reinforcement Screwing Machine is engineered for high-speed and precise screwing operations on PVC and aluminum profiles. Equipped with dual screwing heads that can operate simultaneously or independently, it provides exceptional flexibility and productivity. The pneumatic automatic screw feeding system ensures consistent performance, while the foot pedal control and safety switch guarantee flawless and secure operation. With torque adjustment, automatic profile clamping, and a screwing speed of just 1.5 seconds per head, the RS 172 delivers outstanding efficiency and durability for professional production environments.
Frequently Asked Questions
Find quick answers to common questions about our Fully Automatic Profile Screwing Centers.
1. What is the core function of a profile screwing center in PVC production?
A profile screwing center automatically inserts and tightens screws into PVC profiles at predefined positions, reducing manual effort and errors. It ensures high consistency in hardware mounting across large volumes. These machines are often integrated with profile machining and cutting centers to form a continuous production line. With precise positioning and programmable parameters, they help maintain tight tolerances and uniform assembly quality.
2. What distinguishes RS 225 from other screwing machines in this category?
The RS 225 Profile Screwing Center features dual fully automatic screwing axes that work simultaneously, enhancing throughput and reliability. Servo‑controlled positioning ensures 0.1 mm precision per screwing position. The machine supports loading up to 8 profiles and maintains a database of screwing parameters (up to 10,000 profiles). It also allows for remote diagnostics and is compatible with machining centers in an automated workflow.
3. What advantages does the RS 235 Fully Automatic Screwing Profile Centeroffer?
4. Can these screwing centers adapt to different PVC profile designs and hardware configurations?
5. What maintenance practices help ensure reliability and longevity in screwing centers?
Regular cleaning of screw feeding systems, sensor windows, and guide rails prevents dust or debris from influencing accuracy. Lubrication of moving parts, ball screws, and rack‑pinion mechanisms is essential to reduce wear. Periodic calibration of servo axes and position detection systems keeps tolerances tight. Checking pneumatic lines, seals, and air pressure ensures consistent screw insertion force. Finally, monitoring error logs and remote diagnostics helps preemptively resolve issues before breakdowns occur.
