MCALS 650 Profile Processing & Cutting Center
SCHTEC MCALS 650: 24-axis CNC for aluminum profiles up to 7m. Ø600 mm & Ø400 mm saws, 0.1° precision, 16-tool milling. IoT-ready, 15” touchscreen, 40 kW.
MCALS 650 Technical Specifications
| Voltage | 400 V, 3 Ph, 50-60 Hz |
| Power Consumption | 40 kW, 100 A |
| Spindle Speed | 24,000 rpm |
| Spindle Power | 4.5 kW, S6 |
| Collet Type | ER 25, ER 25 mini |
| Min. Profile Width | 35 mm |
| Maximum Tool Count | 16 units |
| Max. Profile Height | 240 mm |
| Max. Profile Width | 300 mm |
| Max. Profile Length | 7,000 mm |
| Air Pressure | 7 bar |
| Air Consumption | 3,600 l/min |
| Machine Height | 2,780 mm |
| Machine Length | 16,780 mm |
| Machine Width | 4,180 mm |
| Machine Weight | 9,450 kg |
Description
Standard Features
- On Aluminium profiles, all drilling, milling, marking, and cutting processes are carried out under computer control.
- Operates with high efficiency with 24 high-precision axes controlled servo motors,
- Capacity for loading 6 profiles, capable of loading profiles up to 7 meters in length.

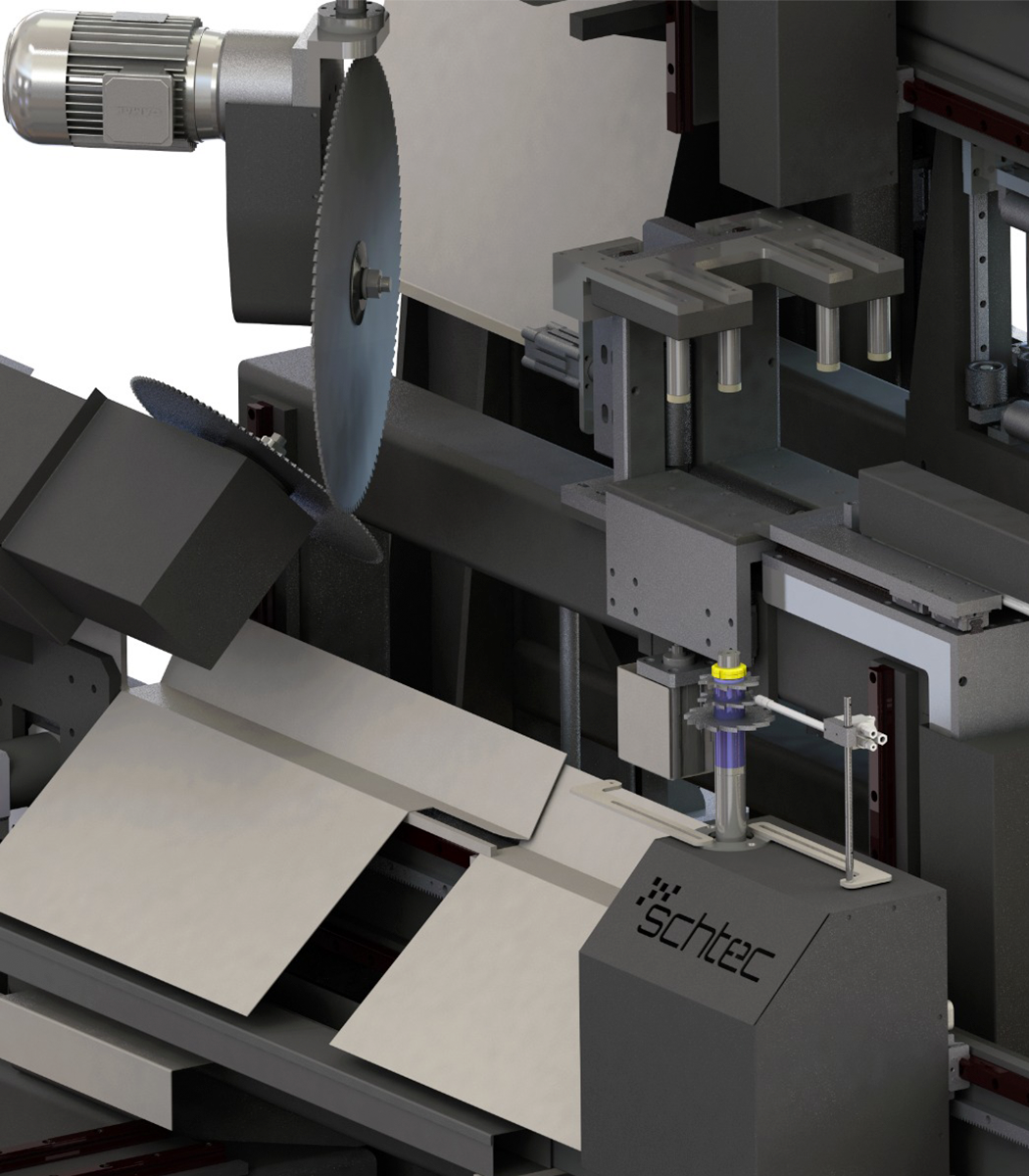

- Automatic cutting with 0.1° precision using a Ø600mm vertical saw, servo motor controlled.
- Automatic cutting with 0.1° precision using a Ø400mm horizontal saw, servo motor controlled.
- Servo-controlled gripper that can rotate 0° to 180°.
- Capability to perform milling, drilling, and angled drainage channel operations.
- Waste collection conveyor and wasting bin inside the machine.
- PC-controlled, capable of 3+3 = 6-axis interpolation in two separate groups (Saw-CNC).

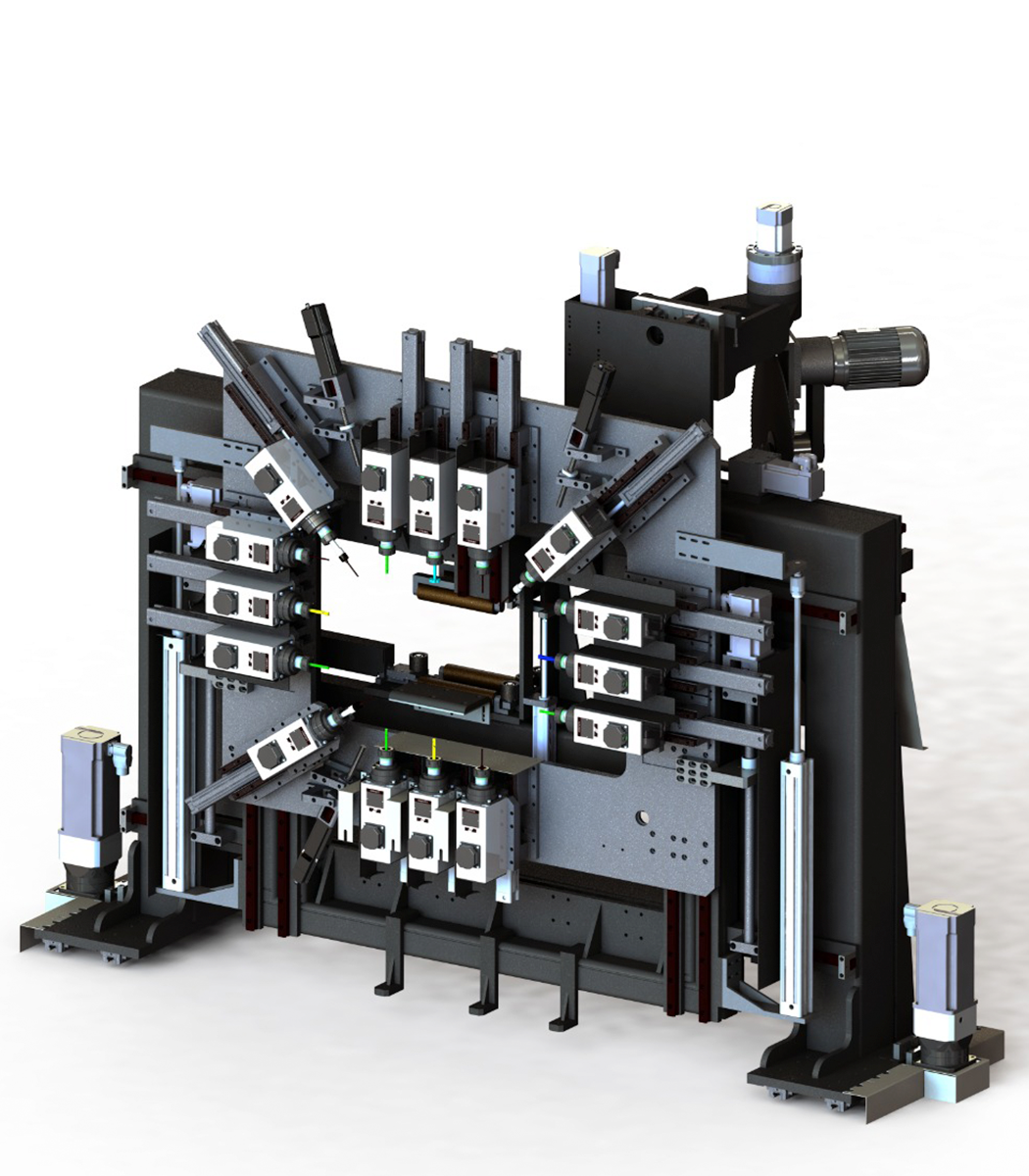

- Precision operations with 16 tools located at the milling station.
- Intermediate angle operation capability with a 4-angle servo-controlled tool.
- Height-adjustable servo-controlled clamp units in the Saw and Milling groups.
- Electronic horizontal and vertical clamp control in the saw group.
- High-performance coolant system arranged for use during profile processing.
- Low power consumption enabled by smart control technology.
- DC connection in axis drives for greater energy efficiency.
- Uninterruptible Power Supply (UPS).
- High-performance industrial PC with a 15″ touchscreen, Windows 10 Embedded OS, operates fanless between 0°C and 55°C.
- Industrial PC Based Servo Control System (Beckhoff)
- Online diagnostic and troubleshooting via user friendly interface.
- Compatible with IoT & Industry 4.0.
- User-friendly interface and online diagnostics and fault detection via I/Q and pneumatic system BUS control.
- Ability to upload job files via USB or Network and connect remotely to the machine.
- Centralized lubrication system that simplifies machine maintenance.
- Fast and efficient remote service via online connection.
Optional Features
- Option: 3-axis servo-controlled profile fitting unit.
Product Description

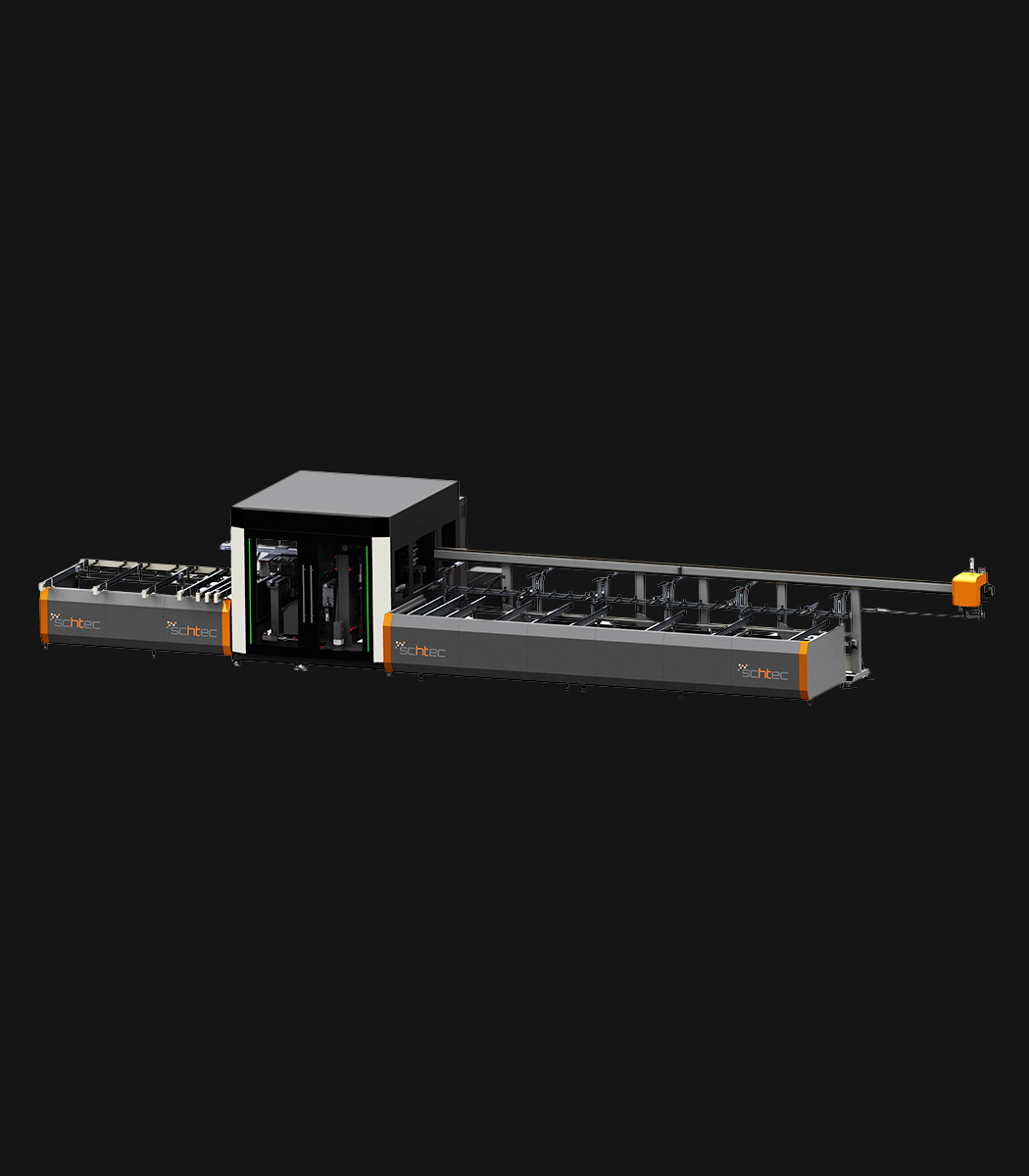

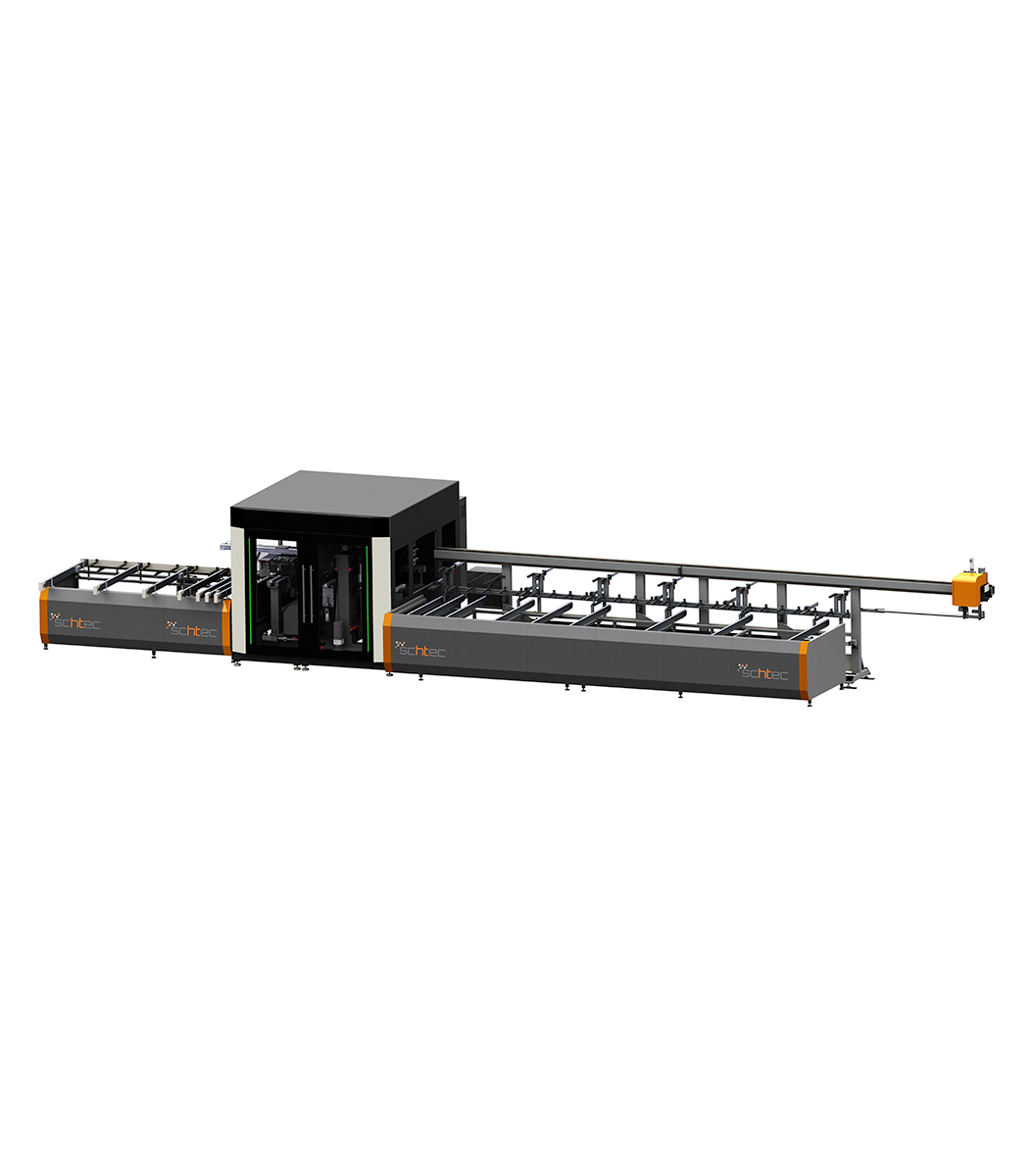

The SCHTEC MCALS 650 is a fully automated production center that integrates cutting, drilling, milling, and marking of aluminum profiles. With 24-axis servo control and vertical Ø600 mm and horizontal Ø400 mm saws, it delivers 0.1° precision. It supports profiles up to 7 meters in length and includes a 16-tool milling unit, completing all processes with minimal operator intervention. A Windows 10 Embedded-based 15” touchscreen, IoT compatibility, and Industry 4.0 readiness make it ideal for smart manufacturing. Its 40 kW motor delivers maximum efficiency for industrial-scale production.
FAQ
Profile Processing & Cutting Centers for PVC Profiles
Frequently Asked Questions
Find quick answers to common questions about our Profile Processing & Cutting Centers for PVC Profiles
1. What is the main advantage of a Profile Processing & Cutting Center?
A Profile Processing & Cutting Center is a fully automated CNC machine that combines multiple operations into a single, continuous workflow. Instead of moving profiles between separate machines for cutting, milling, drilling, and screwing, these centers perform all processes in one integrated station. This drastically reduces production time, minimizes labor dependency, eliminates manual errors, and optimizes the factory floor space.
2. What specific operations can these centers perform on PVC profiles?
Schtec's CNC centers are highly versatile. They can perform all necessary operations on PVC profiles, including: cutting at any angle (e.g., between 30-150 degrees), milling water slots, drilling for handles and hinges, marking parts, and even automatic reinforcement screwing on advanced models. The CSML 240 and SMC 360 can be equipped with optional screwing units to create a complete, end-to-end processing solution.
3. How do Schtec machining centers achieve such high speed and precision?
Our centers use a high-performance industrial PC-based control system (from our partner Beckhoff) that manages high-torque servo motors on all axes. This allows for positioning accuracy of up to 0.1 mm. The axes move on hardened steel rack-pinion and ball screw systems with central lubrication, ensuring smooth, repeatable, and accurate movement at high speeds for many years.
4. What is the benefit of a multi-profile infeed magazine?
The infeed magazine, or loading station, allows operators to load multiple raw PVC profiles (often 8 to 11 bars) at once. The machine then automatically feeds, processes, and cuts each profile according to the pre-loaded job list. This feature dramatically reduces idle time, minimizes operator dependency, and enables continuous, "lights-out" manufacturing, which is a massive boost to overall productivity. The SMC 320 and SMC 360 feature an elevator system to further reduce loading times.
5. How do these CNC centers integrate with our existing software?
To ensure seamless integration into a modern digital factory, our machining centers are designed to be fully compatible with all major window design programs. Job files can be transferred to the machine via Ethernet (network connection), Wi-Fi, or USB. The system can also be equipped with a barcode reader to instantly load the correct job for a specific profile, eliminating manual entry errors and ensuring maximum data accuracy from the office to the factory floor.
